Factory Testing
Testing & Validation
Every unit passes through 5 test stages before it ships. Here is exactly what we test, why, and how we document it.
01

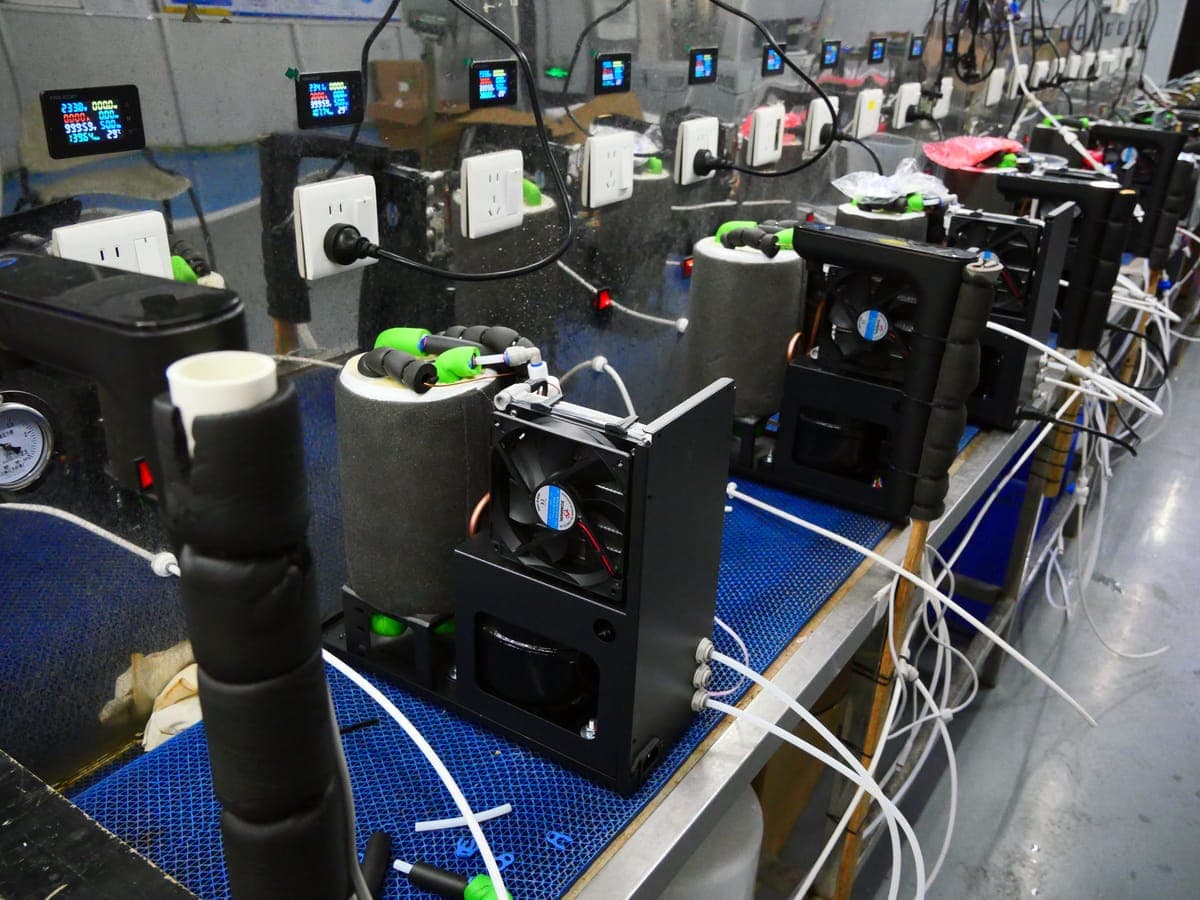

Water Circuit Leak Test
Each unit is pressure-tested on the water circuit before leaving the line. The system is pressurized and held for a set period; any pressure drop triggers a rework. This step prevents on-site water leaks after installation.
- Water circuit pressurized to test spec
- Hold period with pressure drop monitoring
- Failed units reworked before next stage
- Record kept per production batch
02

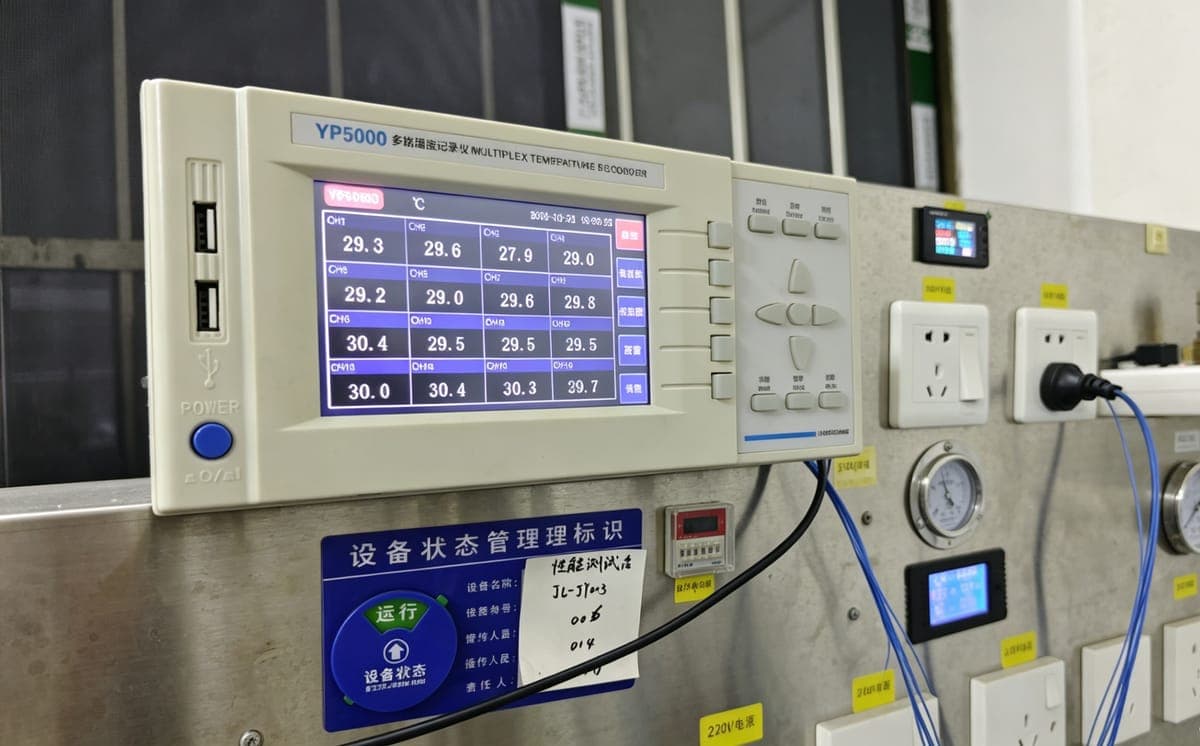

Temperature & Voltage Test
Every unit is powered on and run through a temperature verification cycle. Output water temperature, voltage stability under load, and cooling recovery time are checked against the published specification for that model.
- Output temperature verified per model spec
- Voltage stability check under operating load
- Cooling recovery time measured
- Functional pass/fail logged per unit
03

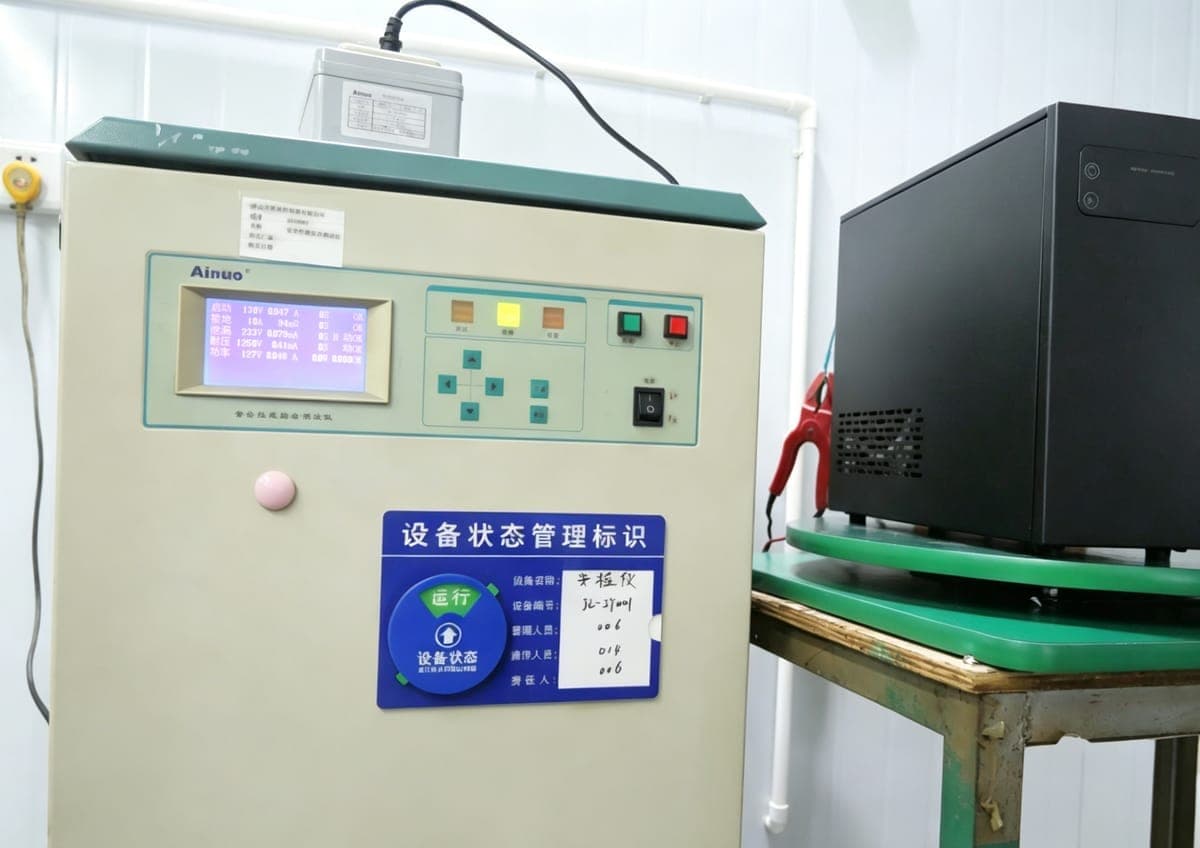

Electrical Safety Check
Electrical safety parameters are measured using calibrated test equipment: dielectric strength, ground continuity, and leakage current. Values are compared against the IEC 60335 safety limit. Units outside spec are held for review.
- Dielectric strength test per IEC 60335
- Ground continuity verified
- Leakage current within safety limit
- Test result logged per serial number
04

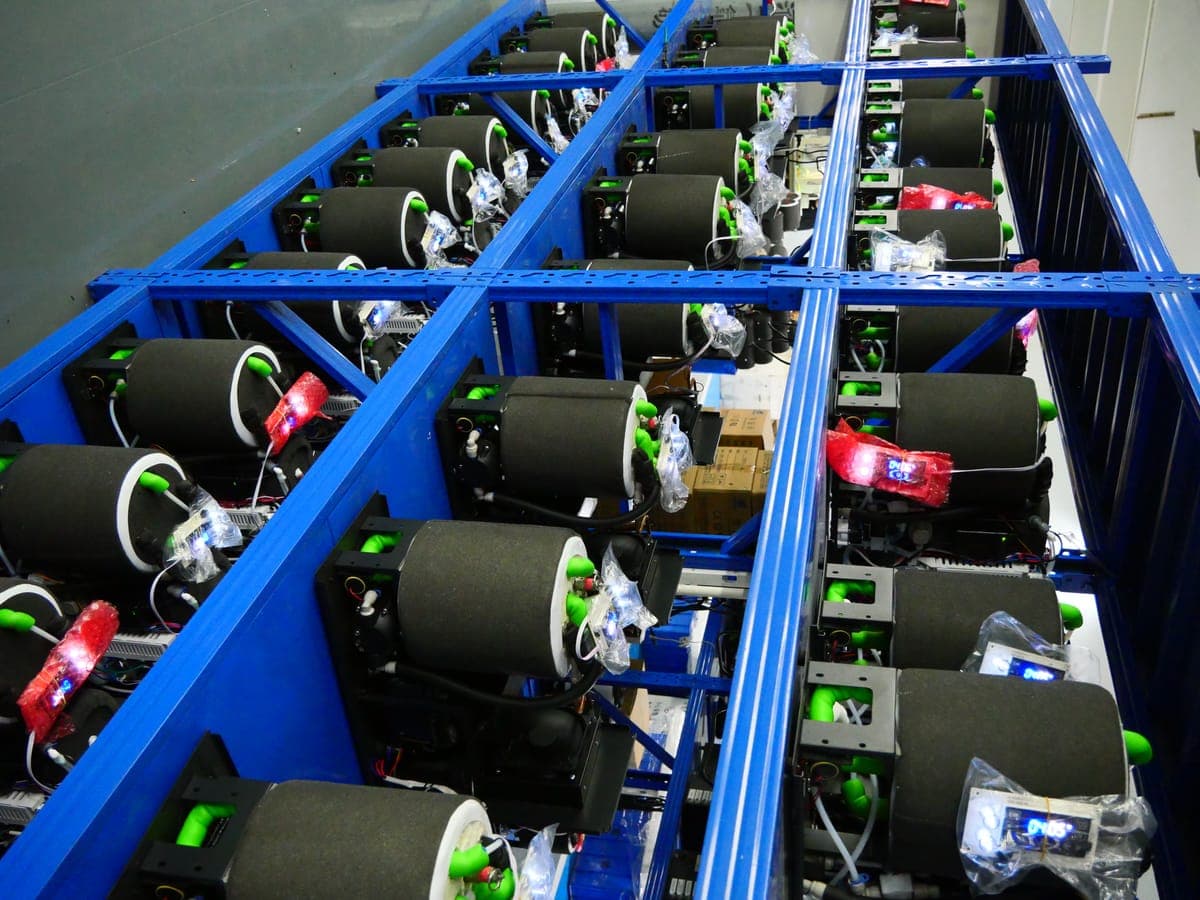

Aging Test
Every unit is placed on a continuous running cycle for a set period before packing. This full-coverage aging process is designed to catch any early-life issue on every single machine, not just a sample.
- Every unit runs continuous duty cycle
- Full coverage — no sampling
- Units with abnormal behavior reworked
- Aging record kept per serial number
05

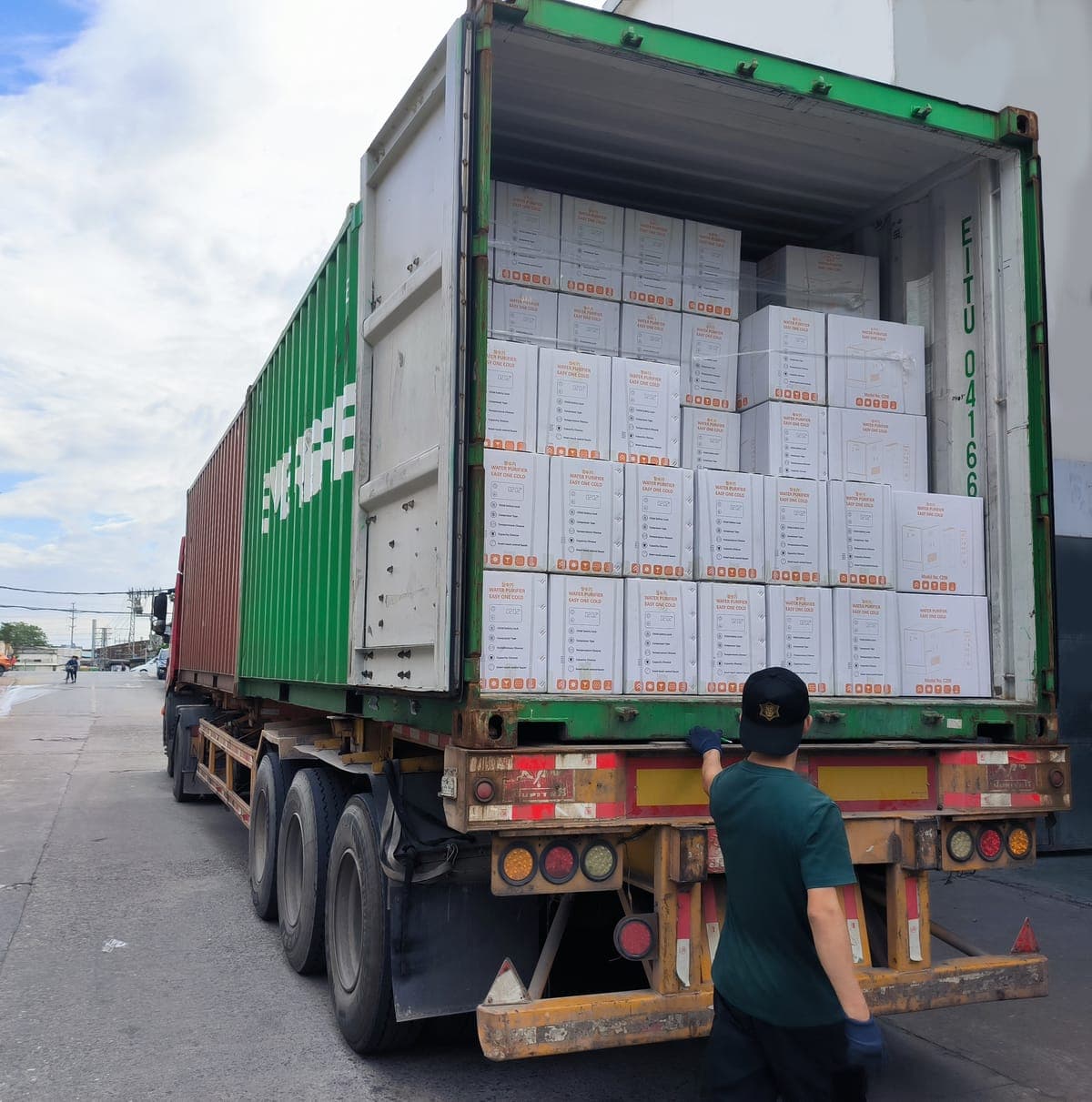

Final Visual QC & Shipping Sign-Off
Before packing, each unit receives a visual inspection: exterior condition, label accuracy, accessory completeness, and packaging integrity. Cleared units are sealed and staged for container loading with a signed QC record.
- Visual inspection of exterior and labels
- Accessory and manual check per packing list
- Packaging integrity verified
- QC sign-off recorded per unit
Documentation
Available Test Reports
Standardized report formats ready for OEM partner review and regulatory submission.
Factory Test Report
Simple factory test report provided with each shipment — covers pressure test, electrical safety check, and functional verification. Customized report format available for OEM projects.
Batch Test Record
Test record for the production batch, including sample aging result and QC sign-off. Provided upon request for volume orders.
طلب تقارير الاختبار
Need specific test data for your project or regulatory filing? Our engineering team provides detailed test reports upon request — typically within 48 hours.
